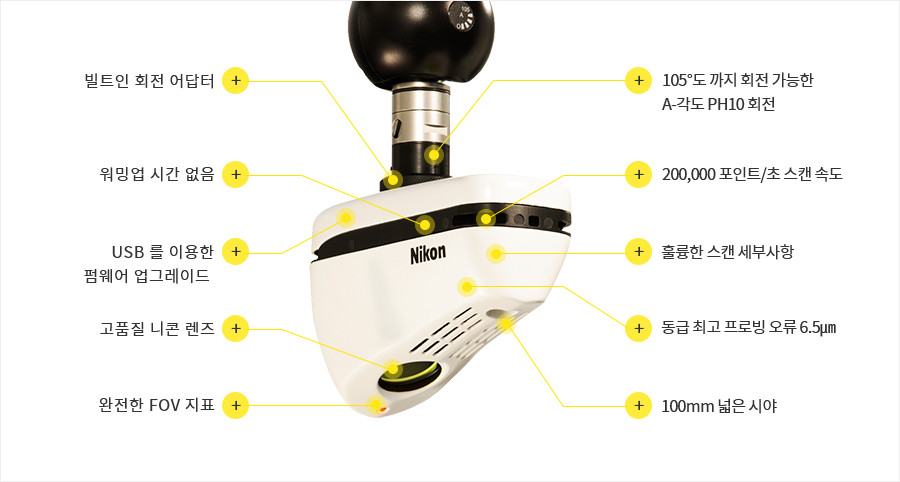

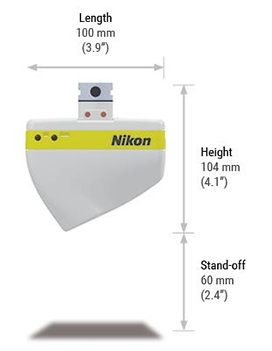

주요기능

  신속한 데이터수집

  미세한 디테일까지 잡아냄

  정확한 요소 측정

  표면 색깔 변화 처리 우수

  쉬운 조작법

  측정 범위 연장


사양

Probing error (MPEp)1
6.5 µm
Ball bar length (MPEE)2
6 µm +L/350 mm
Multi-stylus test (MPEAL)3
6 µm
ISO Probing form error4
15 µm
ISO Probing size error all5
20 µm
ISO Probing dispersion value6
26 µm
ISO Cone angle7
125°
Scanning speed
200,000 points/sec
Resolution
Max. 42 µm
Max. Field-of-View width
110 mm
Field-of-View depth
60 mm
Stand-off distance
105 mm
Laser safety
Class 2
Enhanced Scanner Performance
ESP4
Daylight filter
Yes
Probe head compatibility
PH10M, PH10MQ, CW43, PHS


All accuracy specifications valid for a CMMwith an accuracy of 2µm + L/350 or better using manufacturer supplied testsphere.
1Nikon Metrology test comparable toEN/ISO 10360-2 MPEP using 1ơ sphere fit.
2Nikon Metrology test comparable toEN/ISO 10360-2 MPEE
3Nikon Metrology test comparable toEN/ISO 10360-5 MPEAL

Accuracy specifications according ISO10360-8:2013:
4PForm.Sph.1x25:Tr:ODS,MPE :Maximum probing form error using 25 representative points in translatoryscanning mode
5PSize.Sph.All:Tr:ODS,MPE :Maximum probing size error All using all measured points in translatoryscanning mode
6PForm.Sph.D95%:Tr:ODS,MPL :Maximum probing dispersion value using 95% of the measured points intranslatory scanning mode
7
Cone angle : Region of sphere on whichthe measured points are selected

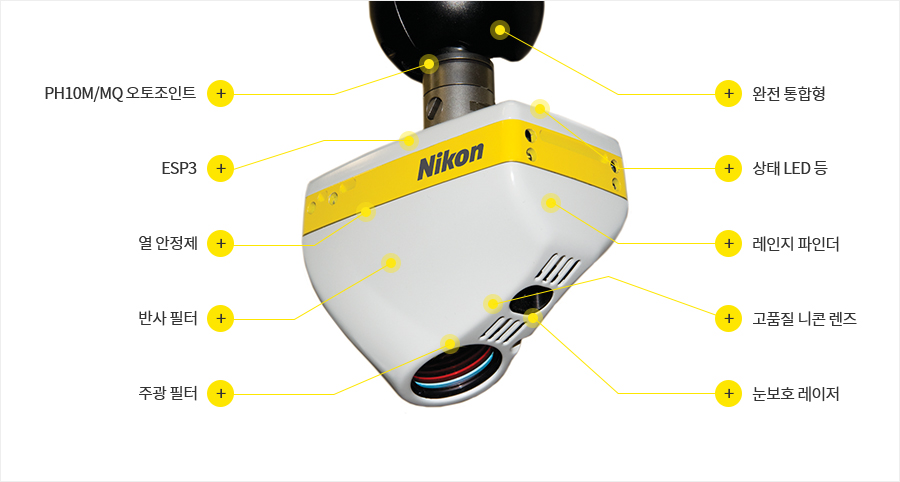

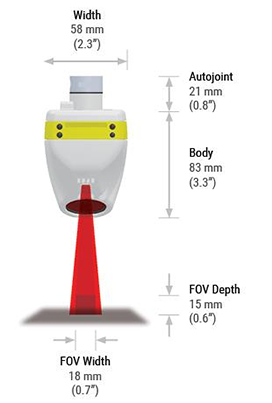

주요기능

  신속한 데이터수집

  미세한 디테일까지 잡아냄

  정확한 요소 측정

  표면 색깔 변화 처리 우수

  쉬운 조작법

  측정 범위 연장


사양

Probing error (MPEp)1
1.9 µm (0.000075” )

Ball bar length (MPEE)2
4µm +L/350mm
(0.00016 +L/13.78“)
Multi-stylus test (MPEAL)3
3.9 µm (0.00015“)
ISO Probing form error4
7 µm (0.00027“)
ISO Probing size error all5
15 µm (0.000591”)
ISO Probing dispersion value6
7,6 µm (0.000299“)
ISO Cone angle7
100°

Scanning speed (approx.)
70,000 points/sec



Resolution (point spacing)
22 µm (0.00087“)
Points per line(approx.)
900
Measuring temperature range
18-22°C (64.4-71.6° F)
Operating temperature range
10-40°C (50-104° F)
Weight
370 g (0.82 lbs)
Ingress Protection
IP30
Laser safety
Class 2
Enhanced Scanner Performance
ESP3
Daylight filter
Yes
Probe head compatibility
PH10M, PH10MQ, CW43, PHS


All accuracy specifications valid for a CMM with an accuracy of 2µm + L/350 or better using manufacturer supplied test sphere
1Nikon Metrology test comparable to EN/ISO 10360-2 MPEP using 1 sigma sphere fit.
2Nikon Metrology test comparable to EN/ISO 10360-2 MPEE
3Nikon Metrology test comparable to EN/ISO 10360-5 MPEAL

Accuracy specifications according ISO 10360-8:2013:
4 PForm.Sph.1x25:Tr:ODS,MPE : Maximum probing form error using 25 representative points in translatory scanning mode
5 PSize.Sph.All:Tr:ODS,MPE : Maximum probing size error All using all measured points in translatory scanning mode
6 PForm.Sph.D95%:Tr:ODS,MPL : Maximum probing dispersion value using 95% of the measured points in translatory scanning mode
7 Cone angle : Region of sphere on which the measured points are selected
